产品型号:cw42

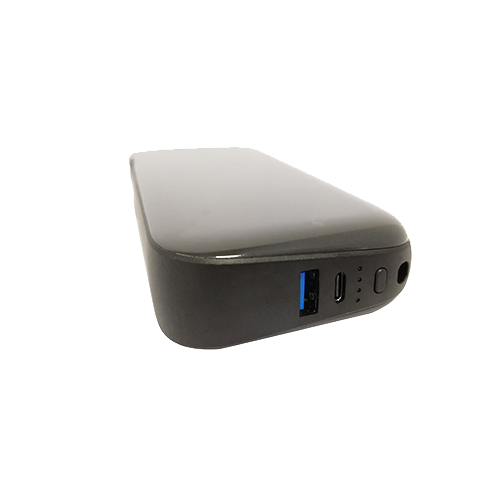

product name:2-in-1 powerbank(pd65w 20000mah)
charging mode:pd fast charge,qc fast charge
interface:multi-port fast charge
input:100-240v-1.6a 50hz
in ac mode-single port output:
pd:5v3a/9v3a/12v3a/15v3a/20v3.25a
qc:5v3a/9v2a/12v1.5a
in ac mode-dual port output:
pd:5v3a/9v3a/12v3a/15v3a/20v2.25a
qc:5v3a/9v2a/12v1.5a
in dc mode-single port output:
pd:5v3a/9v2a/12v2.5a/15v2a/20v1.5a
qc:5v4.5a/9v2a/12v1.5a
in dc mode-dual port output:
pd:5v3a/9v2a/12v1.5a
qc:5v3a/9v2a/12v1.5a
power:65w
dimension:164.6*75.5*29.1mm
weight:465g
housing material:pc abs
protect function:ocp,ovp,otp,scp
applicable evironment:room temperature
certification scope:pse,ccc,bsmi
产品详情

1.support charging the device in ac and dc mode, in ac mode, single c port ouput supports 65w fast charge function, in dc mode single port c output supports 30w fast charge function, high power density, battery capacity 10000 mah;

2.multi-port output, pd,qc,piq and other fast charging functions, suitable for charging  different equipment;

3.compatible with various charging protocols to meet the charging needs of different terminal devices: pd3.0,qc2.0,qc3.0,apple2.4a,bc1.2,samsung afc.
